Chassé Theater

Performing Arts Magenta 01
Performing Arts

Breda, Netherlands

The Chassé Theater in Breda is Netherlands' largest theatre offering a wide range of theatre, music and film-based activities.

Three auditoriums and three cinema spaces offering anything from music and bands to drama and dance plus amateur and semi-pro performances as well as corporate and private events and conferences.

12 x Zero 88 Chilli Pro 24x16A Bypass dimmers and five Zero 88 Chilli Pro 6x25A dimmers in the venue’s main auditorium controlling approximately 309 channels of lighting and LED fixtures including moving lights.

Chassé Theater technical manager Jordy explained, "Theater lighting going forward is now primarily focussed on getting LED fixtures involved, we needed to purchase dimmers that are suitable for powering these as well as conventional fixed voltage luminaires.

A technical upgrade at the Chassé Theater in Breda, The Netherlands sees the installation of 12 x Zero 88 Chilli Pro 24x16A Bypass dimmers and five Zero 88 Chilli Pro 6x25A dimmers in Jupilerzaal, the venue’s main auditorium … where they will be controlling approximately 309 channels of lighting and LED fixtures including some moving lights as needed / specified by the production.

The venue is one of the Netherlands’ largest venues, with a total of three auditoriums and three cinema spaces, mostly a receiving house – anything from music and bands to drama and dance plus amateur and semi-pro performances as well as corporate and private events and conferences, so a truly ‘multi-purpose’ space that is also a diverse cultural melting pot.

The Chassé Theater also stages some of its own productions, and a typical (pre-pandemic) year would see around 350 live performances and 3500 plus film screenings across all the different spaces.

Chassé Theater technical manager Jordy ten Bloemendal is proud to have worked there for 12 years, and is responsible for the lighting installations, budgeting and – together with his colleagues – future visions and planning. He co-ordinates with all the various incoming production companies, ensures all their technical needs are met, and on occasion still programmes and operates the lighting console!

This was the combination of a general technical upgrade and the replacement of the previous dimmers which had been in service for 25 years! The new dimmers were supplied via Zero 88’s distributor, AED Group, and chosen as the best and most versatile option for the Theater’s current and future needs.

We could no longer source spare parts for the old dimmers, and as theater lighting going forward is now primarily focussed on getting LED fixtures involved, we needed to purchase dimmers that are suitable for powering these as well as conventional fixed voltage luminaires.”

Jordy ten Bloemendal, Chassé Theatre technical manager

The new dimmers running in ‘bypass’ fixed voltage mode are also a perfect solution for productions using moving lights.

With this futureproofing topping the required features list, Jordy and his team consulted a host of technicians, gathered their opinions, and then searched for dimming solutions … picking Zero 88.

As a busy mainly receiving theater which does also some own productions, it was important that all the technicians involved supported the product.

Chassé Theater had already started working with the same Zero 88 Chilli Pro Bypass dimmers in 2017 which are installed in the middle-sized room Koninklijke Drukkerij AKA de Jong Zaal (New Hall), offering approximately 270 channels.

These first Chilli Pros in the building were also a replacement for the old dimmers in place at the time. Everyone was delighted with the kit and the results, so this excellent Zero 88 experience helped propel the decision to repeat the process in the large hall.

I have a very positive impression of the products – they have proved reliable and stable, while having local support and backup from AV specialist AED Group is also hugely important in our choice of brand. Having good dimmers improves the general technical facilities and offers greater scope to light shows creatively and imaginatively.

Jordy ten Bloemendal

These specific Chilli Pro dimmers were chosen for their compactness and because they have the option of functioning as a standard dimmer, and more importantly, the channel can be switched to fixed voltage to run LED fixtures as more are introduced to the rig in the future.

Zero 88’s Chilli Pro range comprises high-density, wall-mounted and convection cooled power switching and dimming cabinets which are ideal for fitting into often already tight spaces in assorted venues.

They are well known and loved for being quick to install and set up and easy to operate and maintain, becoming a popular workhorse for hard-working professional venues like the Chassé Theater.

Chilli Pros are available in 12 and 24 channel packages with 10 or 16 Amp load capacities and optional RCD protection, relay channels, bypass switches and RCBOs, all contained in an elegant, slim line wall-mounting enclosure.

A logical and easy to read user interface and a backlit LCD screen on each individual dimmer assist in convenient setups for DMX patching, preheat, topset and dimmer curves.

The user interface and all breakers are also protected by a lockable breaker cover which is handy for multi-user environments like the Chassé Theater, and there is even a choice of responses in the event of DMX failure, including backup memories or inbuilt chases and an alarm input trigger.

Projects like the Chassé Theater confirm the popularity of our solutions for modern and energy-efficient refurbishments of venue dimmer and power systems. The Chilli Pro bypass units can be efficiently integrated into existing infrastructures without generating unnecessary installation costs.

Franck Tiesing, Key Account Manager - Entertainment Lighting

Products used & Features

Projects Product Chilli Dimmers 600x200px

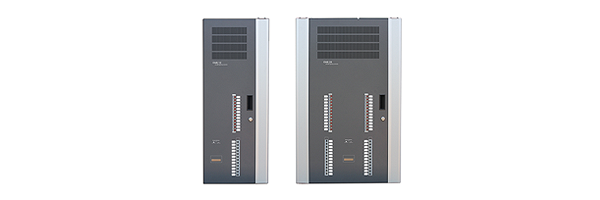

Chilli Pro

A range of high density wall mounted convection cooled power switching and dimming cabinets. Quick to install and set up, easy to operate and maintain.

Read more
Projects Product Chilli Switches 600x200px

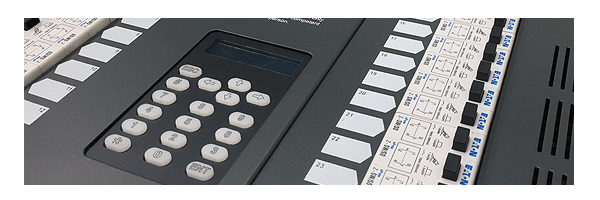

Channel Options

Available in a range of different control variants optionally delivered as a mixture of dimming and hot power switches for todays mixed lighting systems.

Read more
Projects Product Chilli Protection 600x200px

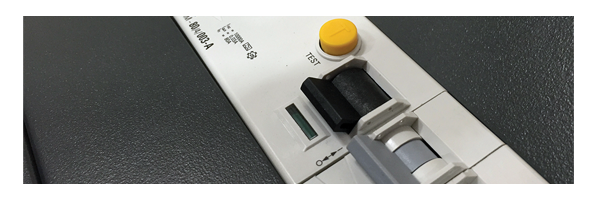

Protection

Chilli Pro are available with MCBs or, depending on the variant, RBCOs per circuit. Chilli Pro is optionally available with RCB protection on the input.

Read more
Projects Product Zeros Software 600x200px
Apps

ZerOS Remote enables wireless control of your rig, allowing you to manipulate, control and playback your shows from your smart phone or tablet.

Read more
Projects Product Chillinet Switches 600x200px
Wall Panels

Available in brushed stainless finish as a ChilliNet 5 Button and a ChilliNet 5 Button with Raise and Lower.

Read more

Performing Arts

Find a distributor

Support

Acknowledgements

Zero 88 would like to thank Jordy ten Bloemendal, courtesy Chassé Theater, Breda and the AED group.

Photos are by Jordy ten Bloemendal, courtesy of the Chassé Theater, Breda.

First published 2021.
