Combining Eaton’s broad portfolio of power management technologies and Zero 88’s market leading entertainment lighting control, RigSwitch is a remote controlled power switching solution suitable for any size venue.

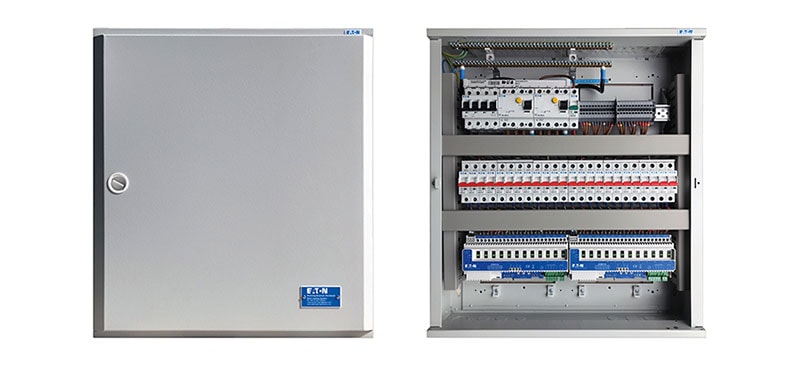

RigSwitch can be delivered in standard 12 or 24 channel cabinet configurations with RCD or RCBO options with a wide choice of user control interfaces. Customised RigSwitch configurations include larger channel counts and options for RCBO traffic lights and AFDD (Arc Fault detection). With individual relays rated for up to 32A operation RigSwitch can cater for even the most power hungry user.
RigSwitch is ideal for switching power for todays’ modern entertainment lighting systems, including moving lights, hot power sockets, specials and LED equipment.
Features
- Up to 96 circuits of feed through relays per cabinet
- DMX control per circuit (or control via DALI and iCANnet)
- Remote button panels available, or use any switch via contact closure
- Intelligent propagation delay to reduce power-up inrush nuisance tripping
- Manual override of any circuit (mechanical, not digital)
- 6, 10, 16, 20, 25 or 32 amps per circuit
- Neutral Disconnect MCBs (with incoming RCD) or RCBO per circuit
- Options for leakage current monitoring and/or arc fault protection
- Includes cable gland plate insert (top)
- Optional glass door and/or lockable door

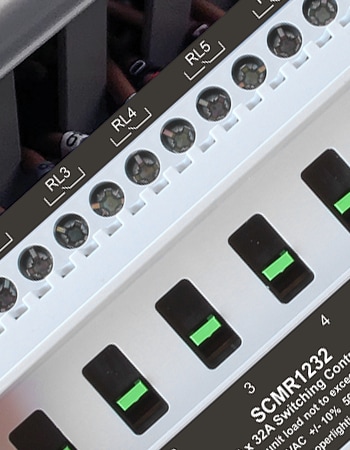

Override relays
The feed through relays provide outstanding features & performance in a truly competitive package.
Each circuit is rated for up to 32 amps and is designed to switch heavy loads of all types, including resistive, inductive & capacitive.
MCBs, RCDs, RCBOs
Circuits are protected by neutral disconnect MCBs as standard.
Optional RCDs break the incoming supply if a fault is detected.
Upgrade circuits to RCBOs to limit inconvenience tripping to individual circuits rather than the whole unit.
Control Options
Three methods of control are available - DMX, DALI and iCAN.
These can be used exclusively, or brought together to link with a virtually limitless number of other products to build a system of any size.
User interfaces
Our range of user interfaces include multiple customisable keypads, touchscreens, time based triggers and your own choice of switch.
These can be configured to match any specification for scene setting, sequencing or manual control.
Variants
| Part Code | Name | |
|---|---|---|
| 0050-000063-00 | RigSwitch, 12 channels, 10a MCB (ND) with 4 pole isolator | |
| 0050-000064-00 | RigSwitch, 12 channels, 10a MCB (ND) with 4 pole isolator & RCD | |
| 0050-000065-00 | RigSwitch, 12 channels, 10a RCBO with 4 pole isolator | |
| 0050-000066-00 | RigSwitch, 12 channels, 16a RCBO with 4 pole isolator | |
| 0050-000067-00 | RigSwitch, 24 channels, 10a MCB (ND) with 4 pole isolator | |
| 0050-000060-00 | RigSwitch, 24 channels, 10a MCB (ND) with 4 pole isolator & RCD | |
| 0050-000061-00 | RigSwitch, 24 channels, 10a RCBO with 4 pole isolator | |
| 0050-000062-00 | RigSwitch, 24 channels, 16a RCBO with 4 pole isolator |
Option 1
Phase
Single phase
3 phase
Option 2
Incoming
Isolator
RCD
Isolator & RCD
Option 3
Circuits
12
24
48
60
72
96
Option 4
Load
6 Amp
10 Amp
16 Amp
20 Amp
25 Amp
32 Amp
Option 5
Protection
N/D MCB
RCBO (neutral ref.)
RCBO (double pole)
Traffic light RCBO
AFDD (Arc Fault)
Option 6
Extras

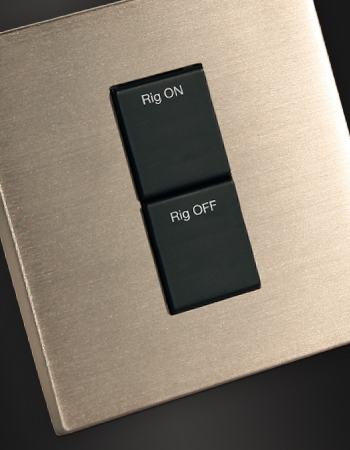

Button panels
Touchscreens
Glass door
Door lock
Universal interface
Accessories
| Part Code | Name | |
|---|---|---|
| 2 button "Sencia" panel ("On" & "Off") | ||
| Customised "Sencia" panel (up to 12 buttons with custom engraving) | ||
| 3.5" touchscreen (with personalised touch interface) | ||
| 5" touchscreen (with personalised touch interface) | ||
| 8" touchscreen (with personalised touch interface) | ||
| PC software (with touch support) | ||
| Universal Interface | ||
| Glass Door | ||
| Door Lock |
