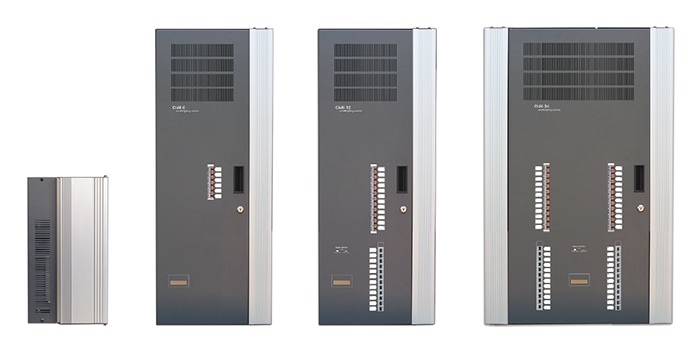

Chilli Range Products Pic

Chilli Pro (v3)

This page covers all Chilli Pro (v3) variants. Many of these are still available – click here for information on available variants.

Chilli Pro is a range of high density wall mounted convection cooled power switching and dimming cabinets. Quick to install and set up, easy to operate and maintain; Chilli Pros are the workhorse of any hard working professional venue.

Chilli Pros are available in 4, 6, 12 and 24 channel packages featuring 10, 16 and 25 Amp load capacities with optional RCD protection, relay channels, bypass switches, RCBOs and HF dimming, contained in a slim line wall mounting enclosure.

The user interface and backlit LCD screen on each dimmer ensure simple convenient set up for DMX patching, preheat, topset and dimmer curves and for peace of mind, the user interface and all breakers are also protected by a lockable breaker cover.

A choice of responses to DMX failure, backup memories, built in chases and an alarm input trigger complete the versatile Chilli dimming package.

Variants

Part Code Name
Chilli Pro 4 - 10A MCBs: Standard
Chilli Pro 4 - 10A MCBs: Relay (with HF dimming)
0011-000020-00 Chilli Pro 6 - 25A MCBs + RCD Request quote
Chilli Pro 6 - 25A MCBs
0011-000013-00 Chilli Pro 12 - 10A MCBs: Standard Request quote
Chilli Pro 12 - 10A MCBs: With Bypass
Chilli Pro 12 - 10A MCBs: All relays
0011-000014-00 Chilli Pro 12 - 10A MCBs + RCD: Standard Request quote
0001-000019-00 Chilli Pro 12 - 10A MCBs + RCD: With Bypass Request quote
Chilli Pro 12 - 10A MCBs + RCD: All relays
Chilli Pro 12 - 10A RCBOs: Standard
Chilli Pro 12 - 10A RCBOs: With Bypass
Chilli Pro 12 - 10A RCBOs: All relays
0011-000016-00 Chilli Pro 12 - 16A MCBs: Standard Request quote
Chilli Pro 12 - 16A MCBs: With Bypass
Chilli Pro 12 - 16A MCBs: All relays
Chilli Pro 12 - 16A MCBs + RCD: Standard
Chilli Pro 12 - 16A MCBs + RCD: With Bypass
Chilli Pro 12 - 16A MCBs + RCD: All relays
0011-000018-00 Chilli Pro 12 - 16A RCBOs: Standard Request quote
0001-000023-00 Chilli Pro 12 - 16A RCBOs: With Bypass Request quote
Chilli Pro 12 - 16A RCBOs: All relays
0011-000004-00 Chilli Pro 24 - 10A MCBs: Standard Request quote
0001-000016-00 Chilli Pro 24 - 10A MCBs: With Bypass Request quote
Chilli Pro 24 - 10A MCBs: 12ch as relays
0011-000005-00 Chilli Pro 24 - 10A MCBs + RCD: Standard Request quote
0001-000017-00 Chilli Pro 24 - 10A MCBs + RCD: With Bypass Request quote
Chilli Pro 24 - 10A MCBs + RCD: 12ch as relays
0011-000006-00 Chilli Pro 24 - 16A MCBs: Standard Request quote
Chilli Pro 24 - 16A MCBs: With Bypass
Chilli Pro 24 - 16A MCBs: 12ch as relays
Chilli Pro 24 - 16A MCBs + RCD: Standard
0001-000015-00 Chilli Pro 24 - 16A MCBs + RCD: With Bypass Request quote
Chilli Pro 24 - 16A MCBs + RCD: 12ch as relays
