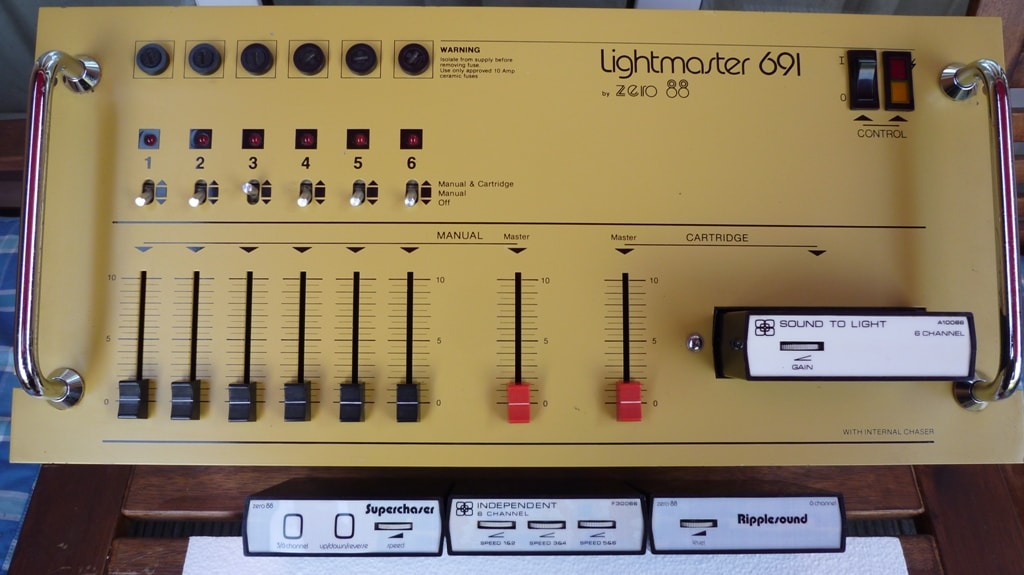

beatmaster Posted September 8, 2014 Report Posted September 8, 2014 Hi, Seeking circuit diagram for my Vintage Lightmaster 691. Who can help me and send it as a pdf Thank you Greetings from Old Germany Engelbert ... and the Beat goes on! www.oldies2000.de Quote
iank99 Posted September 9, 2014 Report Posted September 9, 2014 (edited) Try these.... https://dl.dropboxusercontent.com/u/91773893/LM690_LM691_LM611_Zonemaster-circuits.pdf I'll leave it there a few days then remove it. The last few pages are a bit low quality but they're all I have. Edited to show correct link Edited September 9, 2014 by iank99 Quote Ian Knight aka The Service Guy - www.serviceguy.co.uk
Jon Hole Posted September 9, 2014 Report Posted September 9, 2014 You appear to have linked back to this thread Ian! Here's a link: http://zero88.com/support/index.php?/Knowledgebase/List/Index/130/ Quote Jon Hole Global Product Manager, Systems and Control
iank99 Posted September 9, 2014 Report Posted September 9, 2014 You appear to have linked back to this thread Ian! Here's a link: http://zero88.com/support/index.php?/Knowledgebase/List/Index/130/ I still say giving up parchment and quills were a bad idea Quote Ian Knight aka The Service Guy - www.serviceguy.co.uk
Jon Hole Posted September 9, 2014 Report Posted September 9, 2014 I still say giving up parchment and quills were a bad idea I actually went to 'like' this... and then realised that button doesn't exist over in this part of the internet! Quote Jon Hole Global Product Manager, Systems and Control
beatmaster Posted September 12, 2014 Author Report Posted September 12, 2014 Thanks for the help Quote
