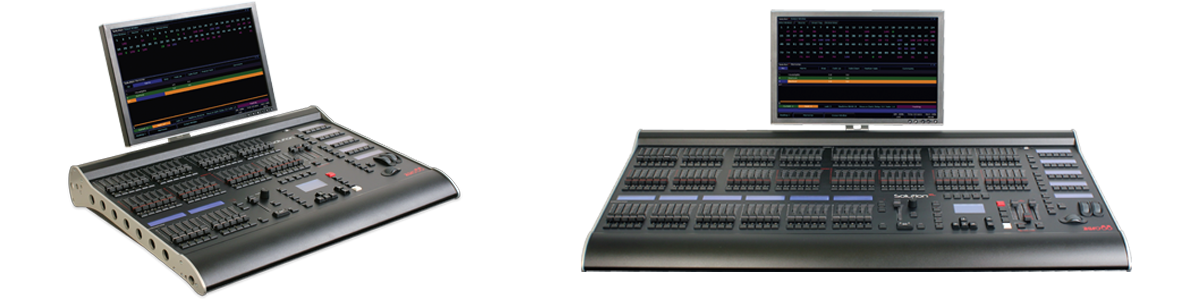

Solution & Solution XL

The Solution & Solution XL are comprehensive multi-purpose lighting consoles, running the powerful ZerOS operating software.

Solution & Solution XL provide simple clear progressions, from basic two preset generic control through to moving light and LED control. Hands on control with dedicated playback faders and channel faders, combine with a powerful theatre stack to enable any type of show.

The flexible front panel includes both playbacks and live control options, to allow the Solution consoles to be adapted to multipurpose venues where the requirements change daily. From simple moving light patching to powerful offset effects, the Solution & Solution XL have been designed with flexibility at their core.

Featuring ZerOS software, the Solution consoles offer powerful adjustment of complex effects, multiple tracking playbacks and adjustable user preferences to enable full professional programming options. Advanced palette references, tracking updates and remote tracking backup options mean you can rely on the Solution consoles to grow as your requirements do.

Designed to be easy to understand, yet adaptable enough to cope with even the largest lighting systems, Solution consoles make controlling your entire system as easy as turning on your house lights.

Features

  • 248 (Solution) or 296 (Solution XL) fixtures
  • USB support for show files storage and touchscreen
  • 4 universe optically isolated DMX outputs, or Art-Net and sACN
  • Colour Picker
  • 8 LCDs on Solution / 12 LCDs on Solution XL
  • RDM
  • Optional upgrade enables SMPTE/MIDI/ChilliNet and Remote Switches
  • Comprehensive effects system
  • 10 (Solution) or 30 (Solution XL) playback faders with scenes, stacks or chases
  • Support for iOS, Android and Windows PC remote displays
  • Fixture Library with over 10,000 personalities
  • Showfile compatibility with other ZerOS consoles
  • Master playback for full theatrical playback
  • USB pluggable Wings available
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards

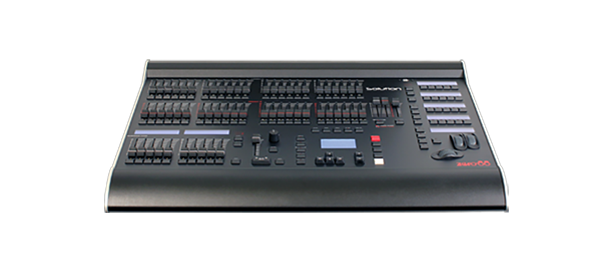

Solution

Category Control Solution 1

Solution is a fully featured, comprehensive and robust lighting console built on the high performance ZerOS operating software platform. Solution offers simple hands on control of conventional generic and moving light parameters across 248 devices and 2048 channels with submaster and cue stack control.

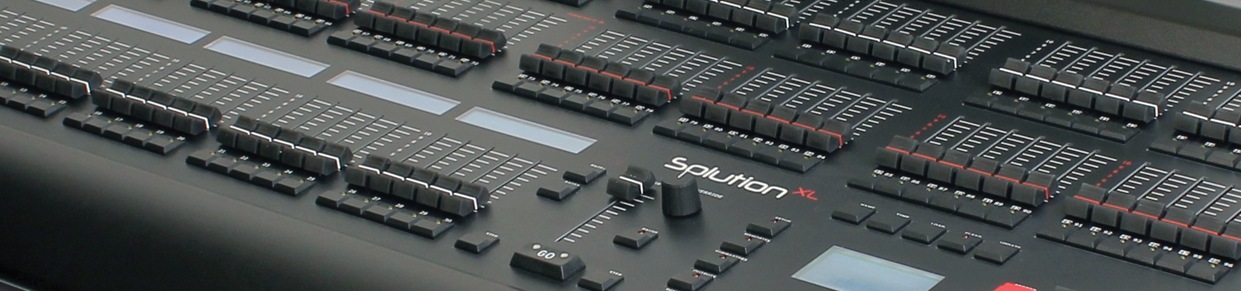

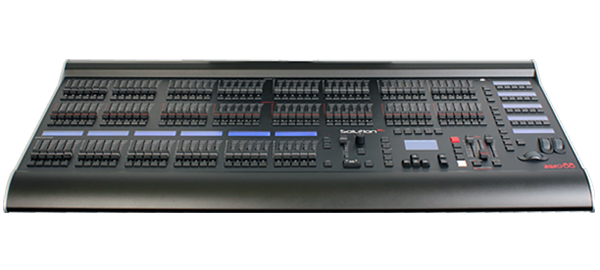

Solution XL

Category Control Solution Xl 1

Solution XL shares the feature set of the Solution console built into a larger platform of 296 devices and 600 submasters making it attractive for the largest multi-functional venues.

Category Control Solution Playback Faders 2

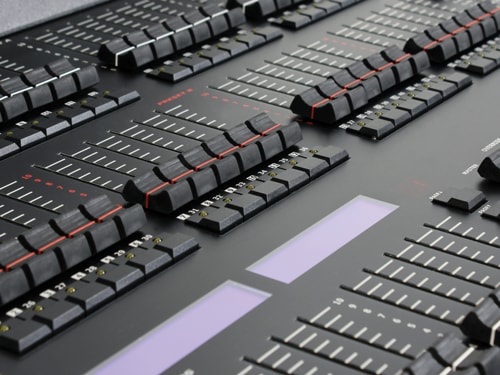

Playback Faders

10 or 30 playback faders offer manual adjustment of preprogramed scenes, chases and effects on the fly.

Category Control Solution Xl Control Wheels 2

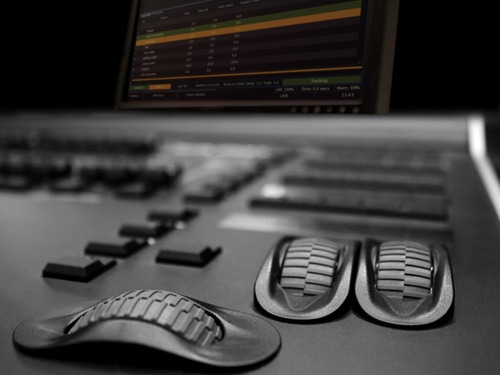

Control Wheels

Three ergonomic control wheels are provided for fixture control, allowing simple intuitive control.

Category Control Solution Multi Function Keys 2

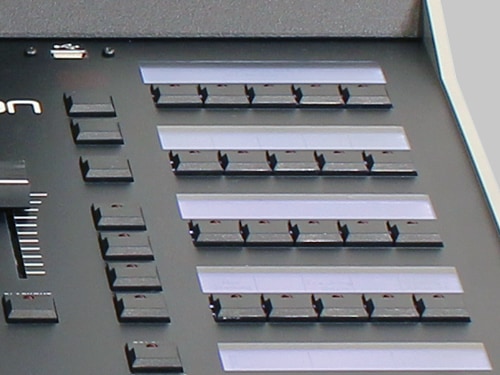

Multi-Functional Keys

Multi-functional keys with LCD displays give you the information you need whenever you need it.

Accessories

Part Code Name
00-863-00 Solution Flightcase Request quote
00-864-00 Solution XL Flightcase Request quote
12-123-99 SMPTE/MIDI/Remote/CAN PCB upgrade Request quote

Variants

Part Code Name
00-868-00 Solution Request quote
00-869-00 Solution XL Request quote

Spare Parts

Part Code Name
5537500 42w 4 pin XLR PSU
4905000 CR2032 3v Coin Cell Battery
1214599 DMX o/p PCB Assembly Kit - PCB Ref: 7043
1214699 Submasters PCB Assembly Kit - PCB Ref: 8067
1214799 Main LCD PCB Assembly Kit - PCB Ref: 8068
1214899 Masters PCB Assembly Kit - PCB Ref: 8096
1214999 Fixtures PCB Assembly Kit - PCB Ref: 8070
1215199 Preset PCB - PCB Ref: 7786
1198399 Wheel Assemblies
5442000 Soft Touch Fader Cap (Wide) - Black/White
5445000 Soft Touch Fader Cap (Wide) - Black/Red
5367000 21mm Push on Knob
5396000 21mm Cap Black White Line
1722-000006-00 60mm Fader - short tang (MFFs)
4407300 10k Pot Lin
5355100 Black Button No LED
6050-000011-00 Black Button Red LED
5355300 Black Button Yellow LED
3947000 Finger Bezel
3948000 Thumb Bezel
5356500 Keyboard Switch
5355500 Red Button
5355600 White Button
9199500 Solution enclosure. Plus carton
9199600 Solution XL enclosure. Plus carton
1212299 ETX + Contron PCB Kit

Downloads

ZerOS

Software & Library

Download the latest release of ZerOS - the operating system for all premium lighting consoles from Zero 88.

  • Phantom (offline)
  • Apps
  • Fixture Library
