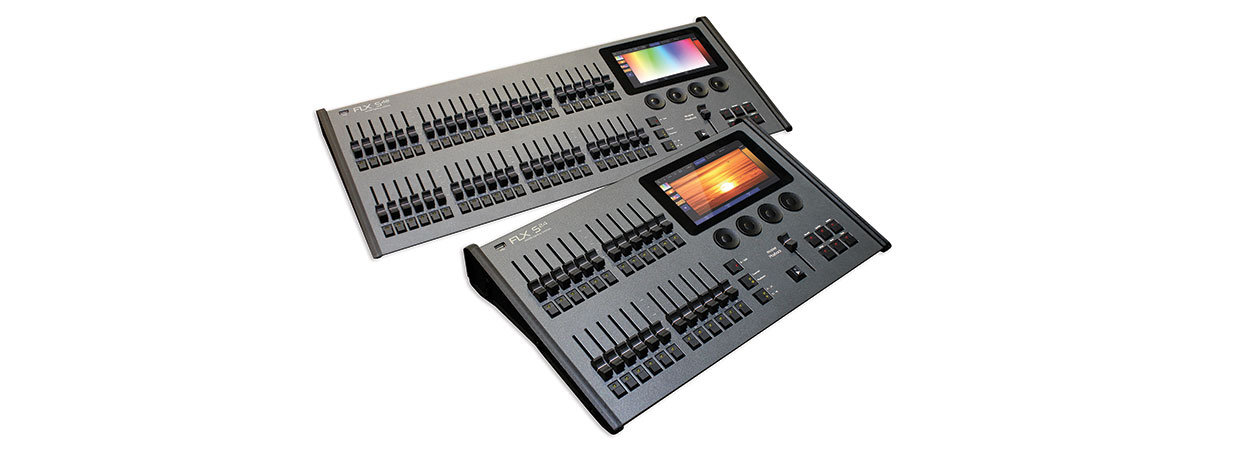

Flx Range Group White Background 10 19

FLX S Lighting Consoles

FLX S consoles are easy to learn and simple to use - delivering all the features you need at an affordable price.

Quickly and accurately control colour changing lights using the multi-touch colour & image picker, the encoder wheels or by selecting colours contained within a “mood” using Mood Boards by Lee Filters, and quickly record it straight onto any fader or one of the 48 (FLX S24) or 96 (FLX S48) instant-access colour palettes to recall later. Moving lights can be controlled using the multi-touch pan/tilt grid, the encoder wheels or with automatic effects like “Figure 8”, “Rainbow” and “Fly-In”.

From design to manufacture, FLX S24 and FLX S48 have been developed to work in a wide range of applications, with specific considerations for education, houses of worship, fringe theatre, community venues, corporate events, concerts, rental, fashion, festivals, holiday parks, cruise ships, TV and many more...

Built in tools such as Auto Palettes and RigSync do all the prep work, getting you ready to operate quicker than ever before. Programming time is reduced with a simple three-step programming method for moving lights, colour changing and conventionals - what you want, how you want it, where you want it. And for all those really important features you need over and over again – you always have direct instant access via the dedicated Z button.

FLX S24

Flx S24 Front Rgb 10 19

Ultimate portability, offering a powerful LED and moving light controller in a small 19” unit with direct access to each of the lights in your rig.

  • Control up to 48 LED, moving lights and conventionals
  • 24 multi-function faders
  • 49 playbacks (each with submaster & full cuestack functionality)
  • 48 groups, 4 x 48 palettes (Colour, Beamshape, Position, Effect)
  • 19" rackmountable (6 rack units high)


FLX S48

Flx S48 Front Rgb 10 19

Double the power with intuitive and hands-on control of up to 96 fixtures, and a touch monitor output to provide an overview of the show.

  • Control up to 96 LED, moving lights and conventionals
  • 48 multi-function faders
  • 97 playbacks (each with submaster & full cuestack functionality)
  • 96 groups, 4 x 96 palettes (Colour, Beamshape, Position, Effect)
  • DVI-D output for optional external touch screen (1024 x 768)


Features (both consoles)

  • Multi-touch interfaces for Colour and Moving Lights
  • Dedicated GO button & playback fader for theatrical control
  • Hands-on intuitive control via 4 encoder wheels
  • Free mobile apps for wireless control (iOS & Android) >
  • Multi-lingual step-by-step touch screen guidance
  • Art-Net 4, sACN and CITP
  • 7” multi-touch screen
  • Automatic Groups, Palettes, Effects and Macros
  • Colour picking, mixing & image capture
  • Mood Boards by LEE Filters >
  • Additive, subtractive and HSV control
  • Store single or multiple cues on each of the playbacks
  • Fixture Library with over 10,000 personalities
  • RDM compatibility >
  • Showfile compatibility with other ZerOS consoles
  • Quiet, dust free, fanless operation
  • 512 Channels upgradable to 1024 Channels >
  • Channels patchable across 64 Universes
  • Two XLR Outputs (1 x 5 pin + 1 x 3 pin)
  • 3 year warranty
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
Category Control Flx S24 Moving Light Control 2
Moving light controls

Quick and intuitive control via precise encoder wheels, multi-touch Pan / Tilt grid and automatic "Move on Dark”.

Category Control Flx Colour Picker 200 150 3
Easy colour selection

Quickly and accurately select colours from the multi-touch colour picker, colour palettes or even an uploaded image.

Category Control Flx S24 Apps And Networking 2
Apps & networking

Free Apps act as a wireless monitor to control your rig. FLX S also supports a range of networking accessories.

Category Control Flx Networking Drawing 1

RigSync opens up lighting creativity opportunities for non-technical people in an entry-level environment.

Judges, PLASA Awards for Innovation

Compare FLX S to our other consoles

View chart

Accessories

Part Code Name
9820-000015-00 FLX S mounting brackets
5630-000078-00 FLX S24 dust cover
5630-000079-00 FLX S48 dust cover
9805-000086-00 FLX S24 flightcase
9805-000087-00 FLX S48 flightcase

Variants

Part Code Name
0020-000022-00 FLX S24, 512 channels, UK
0020-000023-00 FLX S24, 1024 channels, UK
0020-000024-00 FLX S48, 512 channels, UK
0020-000025-00 FLX S48, 1024 channels, UK
0020-000026-00 FLX S24, 512 channels, Schuko/French
0020-000027-00 FLX S24, 1024 channels, Schuko/French
0020-000028-00 FLX S48, 512 channels, Schuko/French
0020-000029-00 FLX S48, 1024 channels, Schuko/French
0020-000030-00 FLX S24, 512 channels, US
0020-000031-00 FLX S24, 1024 channels, US
0020-000032-00 FLX S48, 512 channels, US
0020-000033-00 FLX S48, 1024 channels, US

Spare Parts

Part Code Name
0095-000284-00 FLX S Processor Module (SBC)
0095-000285-00 FLX S Touchscreen
0095-000286-00 FLX S24 User Interface PCBA
0095-000287-00 FLX S48 User Interface PCBA
0095-000288-00 FLX S48 MFFs PCB
0550-000270-01 FLX S Programmed SD card
1722-000007-00 45mm Fader (FLX: Grand Master, FLX S: All)
5440500 Soft Touch Fader Cap (Narrow) - Black/White
5620-000796-00 FLX S Plastic Side (2 required per desk)
0506-000035-00 FLX S Encoder Wheels PCBA
6050-000023-00 Black button (Narrow) - single yellow LED
5355200 Black button (Wide) - single red LED
6050-000024-00 Black button (Wide) - dual red LED
0095-000303-00 Keyswitch (Cherry) - yellow LED
5630-000066-00 FLX S GO Button Cap
5125-000022-00 FLX S USB > USB Panel Mount socket
5125-000026-00 FLX S48 Internal DVI Cable
5825-000211-00 FLX S24 Metalwork Enclosure
5825-000212-00 FLX S48 Metalwork Enclosure
0021-000015-00 FLX S External Power Supply (12V)

Found the perfect products? Now find the perfect distributor.

View full distributors list

    Downloads

    ZerOS

    Software & Library

    Download the latest release of ZerOS - the operating system for all premium lighting consoles from Zero 88.

    • Phantom (offline)
    • Apps
    • Fixture Library
    Category Control Flx S48 Monitor

    ZerOS Universe Upgrade

    FLX & FLX S consoles can be upgraded in individual universe increments using an online upgrade system, ensuring your console is fully future-proofed.
