pixel mapping

zeros pixel mapping effect

  • Please log in to reply
13 replies to this topic

#1 keredyelesob

keredyelesob
  • Regulars
  • 210 posts
  • Gender:Male
  • Location:North West

Posted 21 December 2015 - 10:53 AM

Hi, I think this is more a question for Jon and the Zero88 team, but thought I would post it in the public domain rather than speak with them direct to get general feedback.



Anyway, I am currently touring panto where we have been making good use of several Pixel strips (ws2811 chips for anyone interested) we have several DMX decoders that basically assign each pixel with 3 DMX channels (RGB) unfortunately Zeros desks do not offer pixel mapping capability so I am having to use a tiger touch L, I would however prefer to use one of my Zeros desks, leading me onto my question. I know it is a big ask but is this something Zero88 would consider implementing into their desks in the near future, I have seen pixel mapping getting used more and more over the last few months and would really like to be able to use my Zeros desks to control them. I know a lot of people will say use a media server or similar for this, but if you only want to light a small area then a media server is just over kill, if the strip is kept within one or two universes it would be great to just use the lighting console.



Cheers



#2 Jon Hole

Jon Hole

    Product Manager

  • Zero 88 Admin
  • 1,776 posts
  • Gender:Male
  • Location:Cwmbran, Wales

Posted 21 December 2015 - 10:24 PM

You mean something like this?



Attached File  Matrix 1.PNG   67.19KB   6 downloadsAttached File  Matrix 2.PNG   68.63KB   4 downloads

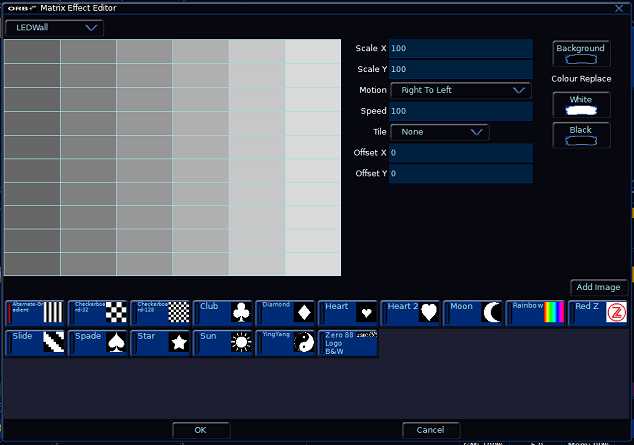

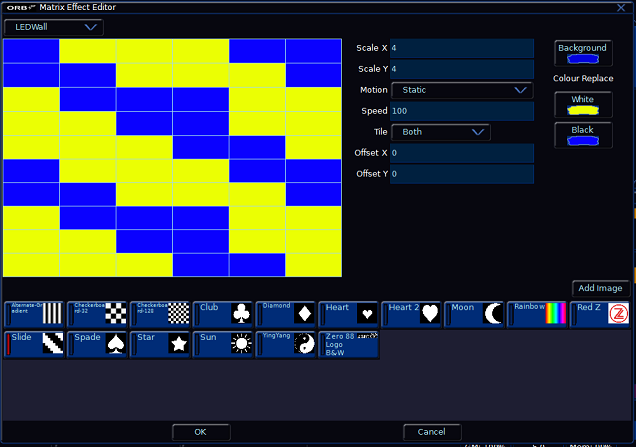

These are early screenshots of something we're working on in the background :-)


Jon Hole
Product Manager, Entertainment Lighting Controls


#3 keredyelesob

keredyelesob
  • Regulars
  • 210 posts
  • Gender:Male
  • Location:North West

Posted 21 December 2015 - 11:05 PM

Hi Jon, this is great news it looks very interesting and similar to what i have used with other desks and pc software.
I know its early stages but will you be able to specify the matrix layout? For example a grid 33 x 33 or just a strip 1 x 30.

Also will it be posible to load animated gif images or flash files?

Last question for now ☺ i see the screen shots are from the orb, do you plan to release on the other zeros desks?

I am looking forward to seeing this functionality in a future release ☺

#4 Jon Hole

Jon Hole

    Product Manager

  • Zero 88 Admin
  • 1,776 posts
  • Gender:Male
  • Location:Cwmbran, Wales

Posted 21 December 2015 - 11:52 PM

The screenshot shows a 10 x 6 grid, so that could be 60 individual fixtures, or maybe 6 sunstrips or something like that. I can't really answer any more questions at this stage :-)

Jon Hole
Product Manager, Entertainment Lighting Controls


#5 keredyelesob

keredyelesob
  • Regulars
  • 210 posts
  • Gender:Male
  • Location:North West

Posted 22 December 2015 - 05:48 PM

Hi Jon



This defiantly sound like exactly what i was after (amusing the fixtures can be RGB), quite exited now :)





I know its early stages but will you be able to specify the matrix layout? For example a grid 33 x 33 or just a strip 1 x 30.




What i meant was will the layout be user definable, so you can have any shape grid to fit the user needs?



I will hold back asking questions until you have more of an idea with the functionality. :-p



cheers



#6 Jon Hole

Jon Hole

    Product Manager

  • Zero 88 Admin
  • 1,776 posts
  • Gender:Male
  • Location:Cwmbran, Wales

Posted 22 December 2015 - 06:17 PM

You must start with a square grid (any size) but not every "cell" must be "populated" with a fixture. So if you want a curve, or a circle, you just create a suitably sized square grid and then just "populate" the cells you require.

Jon Hole
Product Manager, Entertainment Lighting Controls


#7 ziglight

ziglight
  • Regulars
  • 235 posts
  • Gender:Male
  • Location:France

Posted 11 January 2016 - 01:27 PM

Hello

this is very good news and I hope the Pixel-mapping feature will arrive very quickly (even a very basic-one would be nice)



note : I am working also with Congo/Cobalt desks and pixel mapping is easy to handle on there

note also : even a freeware like Freestyler-DMX offers already pixel-mapping -> based on personal or fixed designs or even gif files (animated or static)



#8 keredyelesob

keredyelesob
  • Regulars
  • 210 posts
  • Gender:Male
  • Location:North West

Posted 26 July 2016 - 02:32 PM

Hi Jon



I was just thinking about this thread and wondered if you had made and further progress with its development. would love to use my zeros desks for pixel mapping soon. its a bit of a pain using two desks when working with pixels.



#9 Jon Hole

Jon Hole

    Product Manager

  • Zero 88 Admin
  • 1,776 posts
  • Gender:Male
  • Location:Cwmbran, Wales

Posted 28 July 2016 - 11:28 AM

Current time frame is end of the year... we've made some significant UI changes since the images above


Jon Hole
Product Manager, Entertainment Lighting Controls


#10 Joebee_345

Joebee_345
  • Members
  • 3 posts

Posted 12 September 2016 - 06:00 PM

Hi there,

I was wondering if you had any updates on the timeline for when this new feature will be released. As I am planning on including some very basic pixel mapping, chases and effects on my adj mega tri bars for a show at the end of November.

Also if you don't think the update will not be released by then; is there another way I can make pixel chases on my flx without using external hardware.

Any help would be appreciated.

#11 Jon Hole

Jon Hole

    Product Manager

  • Zero 88 Admin
  • 1,776 posts
  • Gender:Male
  • Location:Cwmbran, Wales

Posted 13 September 2016 - 08:16 PM

is there another way I can make pixel chases on my flx without using external hardware.



There won't be pixel mapping software released by your event in November, however there are probably other ways of doing this.



If you put the batten into 54 channel mode, you can then patch it into the console as 18 separate "RGB" fixtures. This gives you control of each one individually, but also allows you to select them all, run and effect on them, and offset that effect across the individual cells.


Jon Hole
Product Manager, Entertainment Lighting Controls


#12 jw-lighting

jw-lighting

    FLX User

  • Trained on FLX
  • 84 posts
  • Gender:Male
  • Location:Oldenburg, Lower Saxony, Germany
  • Interests:Lighting, Electronics, Embedded Programming

Posted 15 September 2016 - 10:32 AM

There won't be pixel mapping software released by your event in November, however there are probably other ways of doing this.



Hi Jon, do you intend to include pixel mapping within the first zerOS 8 release or is it lower priority and therefore included in a later release?



#13 Jon Hole

Jon Hole

    Product Manager

  • Zero 88 Admin
  • 1,776 posts
  • Gender:Male
  • Location:Cwmbran, Wales

Posted 13 October 2016 - 02:44 PM

Hi Jon, do you intend to include pixel mapping within the first zerOS 8 release or is it lower priority and therefore included in a later release?

The current plan is the first release, but sometimes we decide to split features out so we can do more regular releases. For example, instead of waiting 12 months for 4 features, it would mean you're only waiting 12 months for one of the features as the others have already been released (although usually that means we get complaints that the last three features are late, rather than the truth which is that the first three features are early!)


Jon Hole
Product Manager, Entertainment Lighting Controls


#14 Sven76

Sven76
  • Regulars
  • 53 posts

Posted 30 August 2017 - 03:56 PM

Hi Jon,
quite a bit time since your last update.
Is there anything new you can tell about this toppic?
Quite missing this feature 😉

Best regards
Sven
